The T2720 is a professional instrument that is rugged and o-ring sealed with built-in protection for outdoor use. The instrument is suitable for testing of single earth electrodes
such as lightning conductors and other small earthing systems. Continuity of conductors and conduit coupling can also be measured. There is an option to make two terminal
measurements, but with reduced accuracy.

• 31?2 digit 1999 count LCD
  ? LED indication for correct
   electrode range
  ? Measures to 0.01?
  ? Auto-power ?off?
  ? Data hold
  ? Two or three terminal measurement
  ? Measures earth voltage to 200V
  ? Open loop indication
  ? Low battery indication
  ? O-ring sealed case
  ? Over voltage protection
  ? Colour coded test leads
  ? Crowbar protected

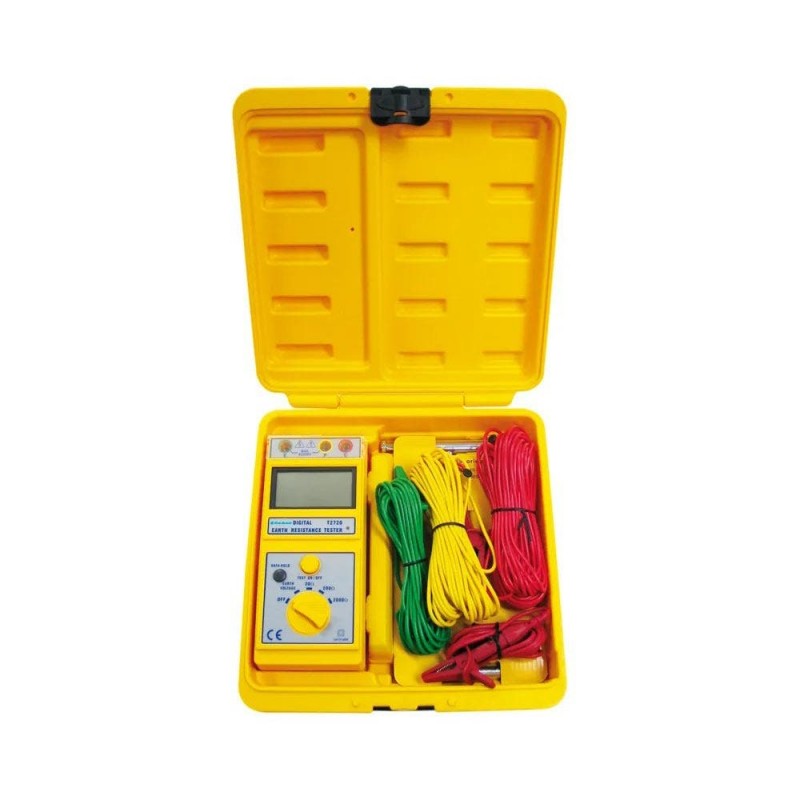

• The T2720 comes in a blowmoulded box with batteries, leads with crocodile clips (red 15m, yellow 10m, green 5m), manual, and 2 earth spikes
• Replacement Test Leads AL36-RYG

Specifications

• IEC61010 CAT III 200V,
  EN55011 1998,
  EN61000-3-2 1995+A1
  1998+A2 1998+A14 2000
  EN61000-3-3 1995, CE
• Feature Range Accuracy
  Earth Resistance 0 to 19.99? steps of 0.01? 2.0% ?2
  0 to 199.9? steps of 0.1? or ?0.1?
  0 to 1999? steps of 1? which ever is greater
  Earth Voltage AC 0 to 199.9V (sine 40 to 500 Hz)
  Test Current Output 2mA @ 820 Hz
  Voltage Output 0 to 80V
• Batteries 6 x 1.5V size AA
